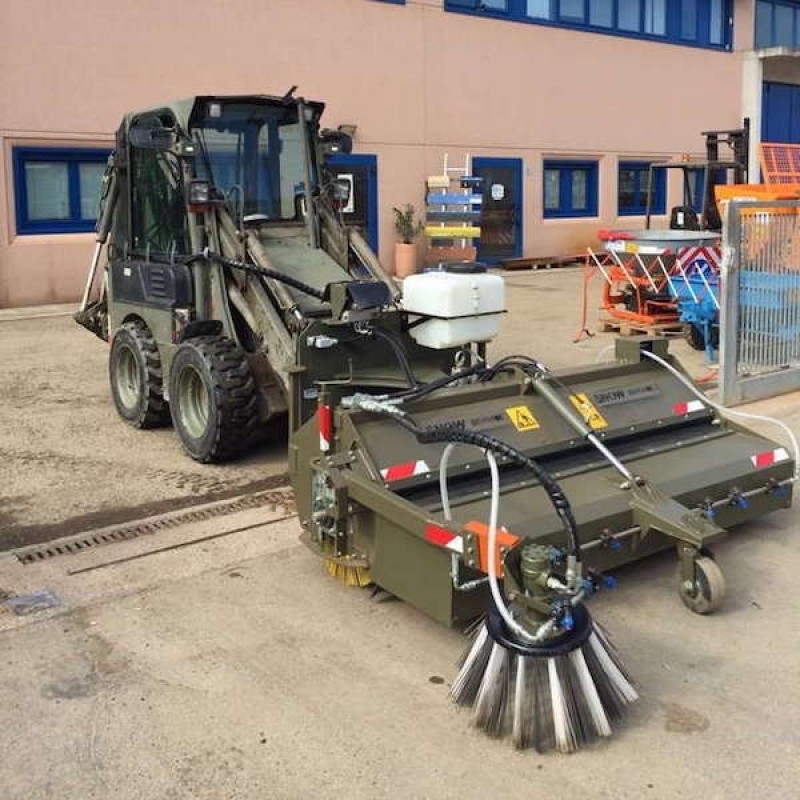

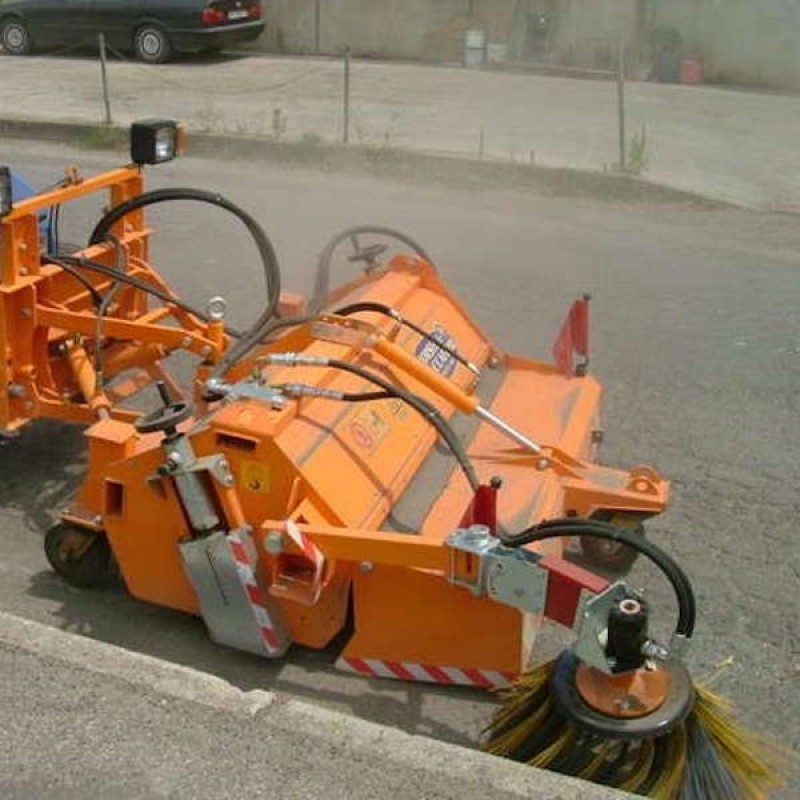

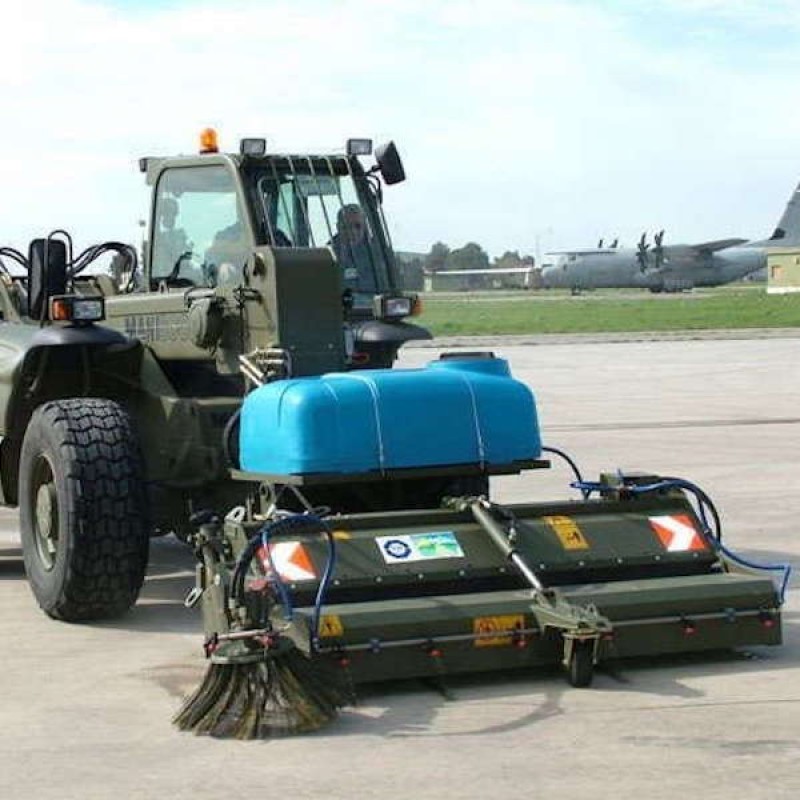

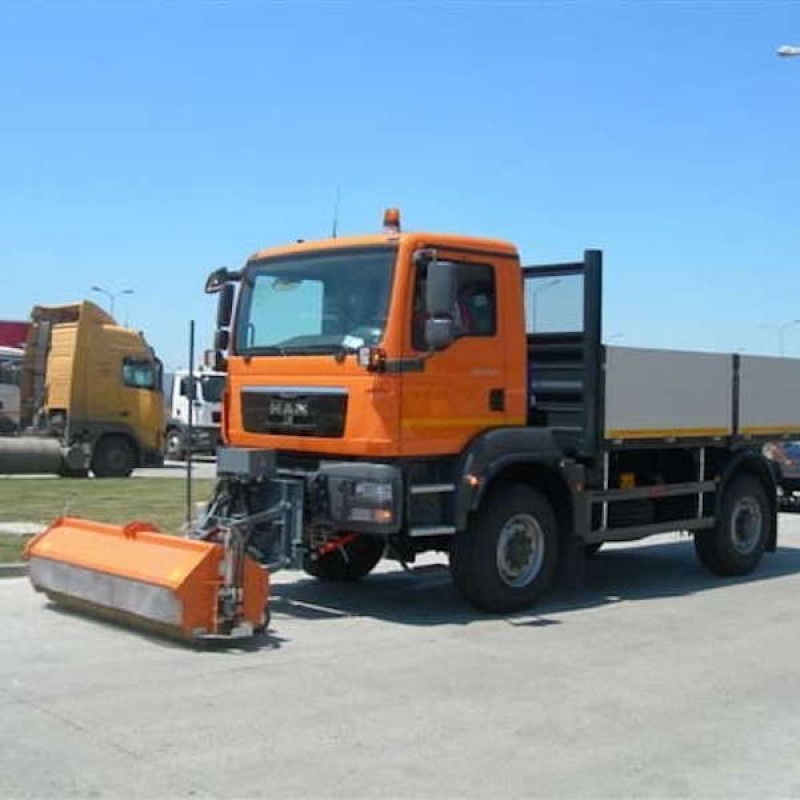

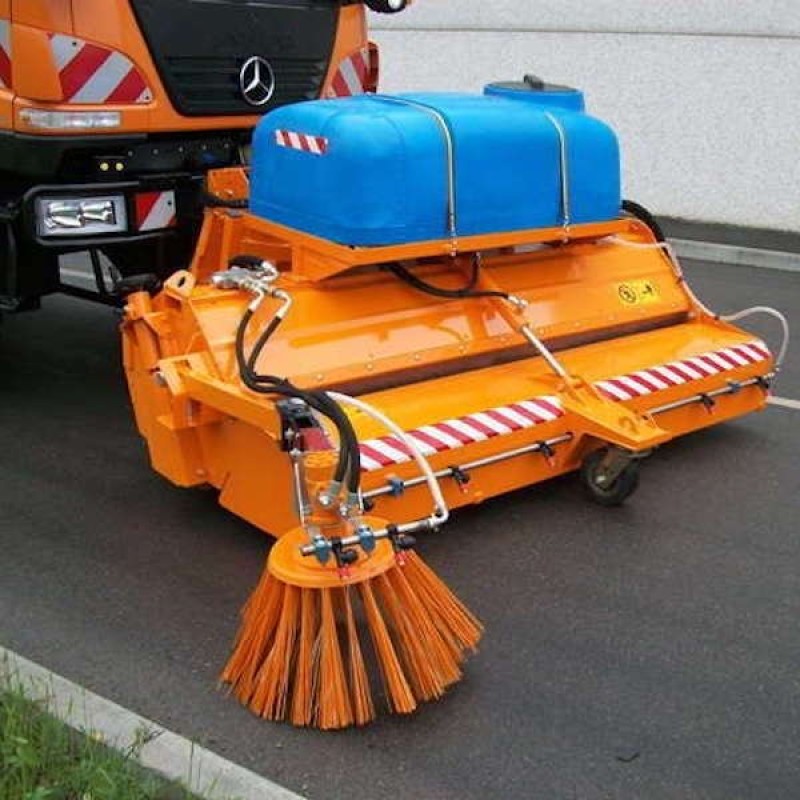

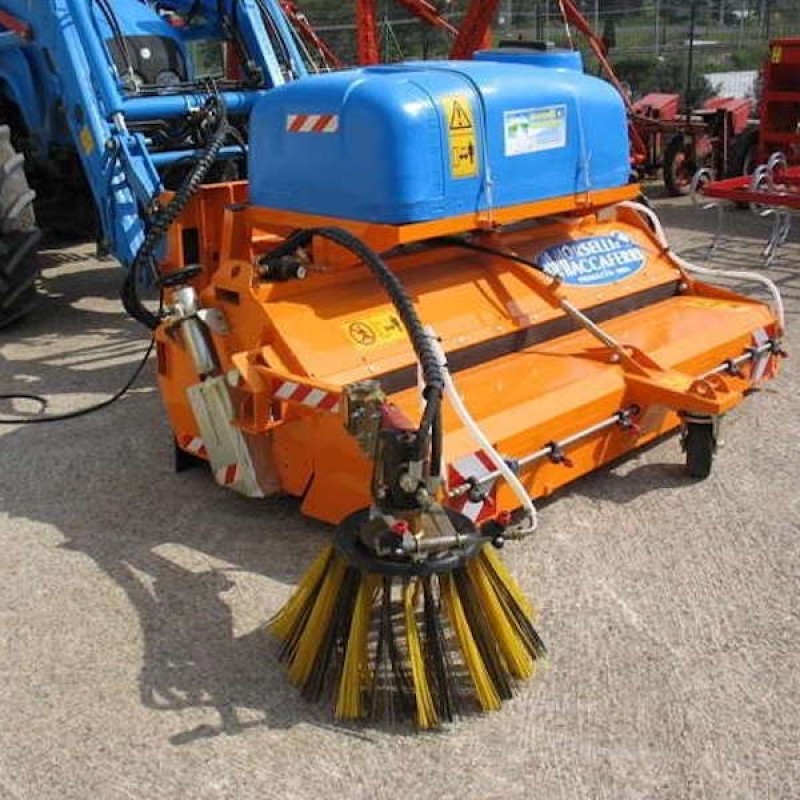

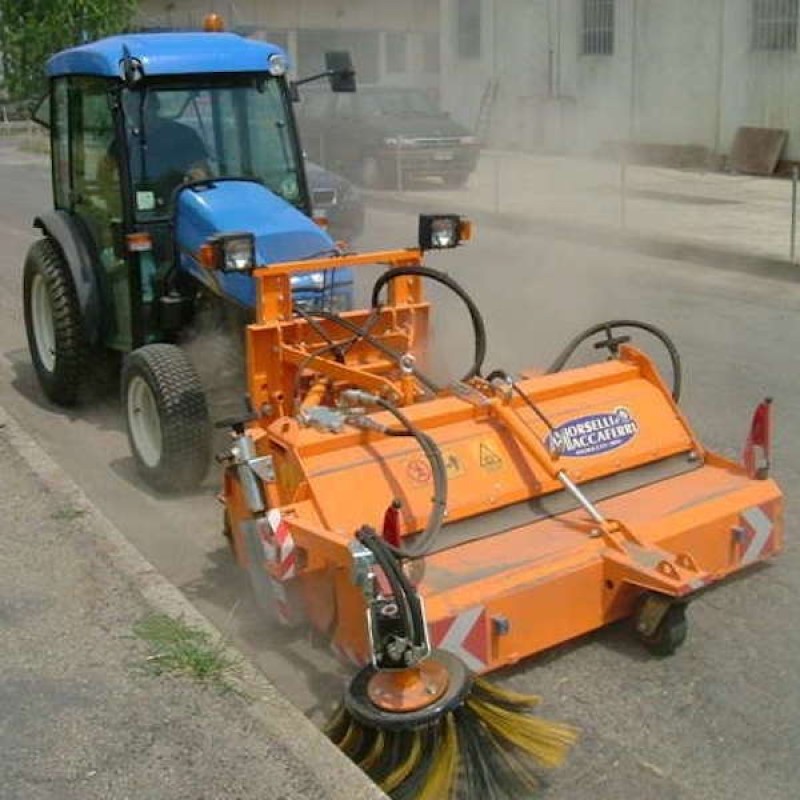

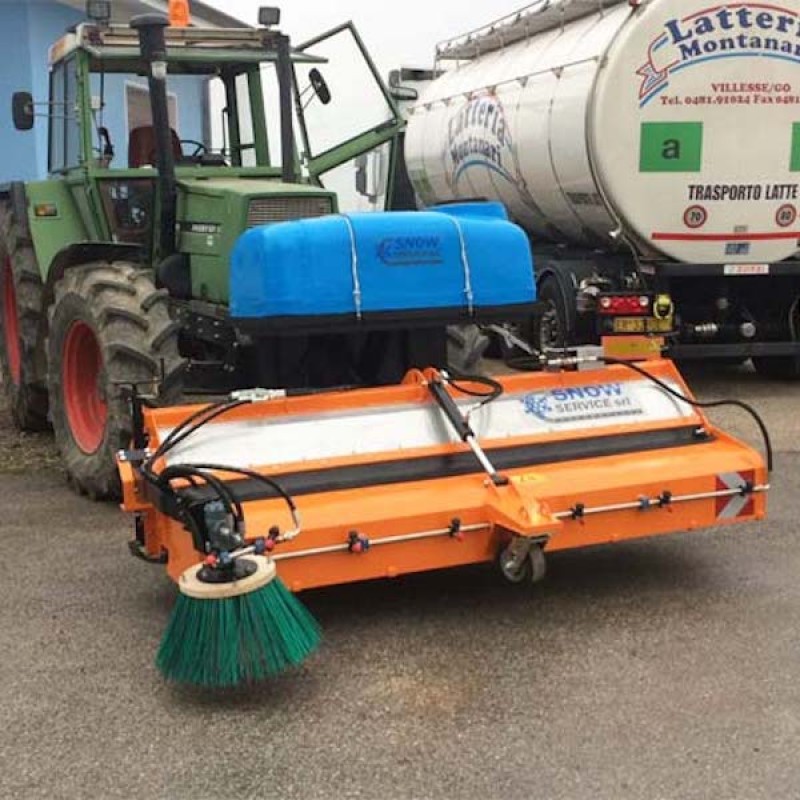

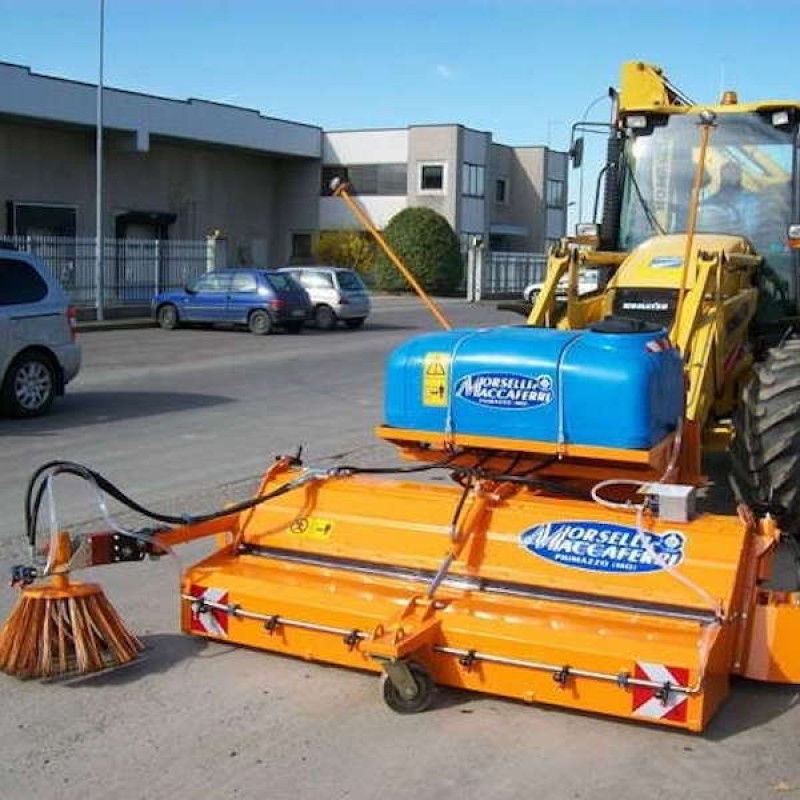

Made entirely of sheet steel and tubular skeleton with high characteristics, complete with upper protection in polyethylene and adjustable splash guard, this hydraulic street sweeper is suitable for application on various vehicles.

Among these: agricultural tractors over 60 hp, backhoe loaders, wheel loaders, trucks with PPT > 3.5 T equipped with independent hydraulic system.

See catalogue

Technical sheet

The SPC, hydraulically operated, is composed of:

• no. 2 hydraulic motors for brush roller and side brush operation
• Flow control valve for regulating the rotation speed of the brush roll and side brush
• Pipes for opening/closing the collection container
• Hose for sweeper lifting/lowering (DIN 76060)
• Piping for inclination
• Pivoting support wheels with adjustable support for brush pressure
• Mechanical adjustment of roller height according to wear
• DIN type backing plate with mechanical orientation
• Sweeping roller complete with interchangeable mixed steel/PPL rings, Ø 600 mm
• Parking feet

It is also characterized by a special painting cycle with anti-rust treatment and final coat in RAL 2011.

For SPC Hydraulic Road Sweeper is also available:

• Hydraulic orientation
• Hydraulic side brush with raised cylinder
• Dust suppression kit with 12 V pump, 300 Lt tank
• Dust suppression kit with 12 V pump and 100 Lt tank
• Pair of led clearance lights
• Pair of work lights
• Front collection container
• Telescopic hitch with hydraulic discharge
• DIN plate attachment gr. 3
• Attachment for tractor 3-point lift
• Skid loader attachment
• Attachment for backhoe loaders and wheel loaders
• Splash guard with adjustable support

Technical sheet SPC hydraulic street sweeper

We pay close attention to adapting our products to the medium you have, reducing the necessary maintenance and customizing services. For special needs, it is possible to adapt our equipment according to your needs, contact us for a personalized quote.
