MICROTECH 220 snow plough for pick-ups and trucks

SKU: 5030760
EAN: 8053847620421
$ 4.982,04 Taxes excluded Price: $ 3.985,63 Taxes excluded
In stock

MICROTECH is the snow plough for pick-ups and trucks cat. N1 with GVWR ≤ 3.5 t built with a special support structure. It can be hitched to the transport vehicle without the need for a traditional DIN mounting plate and complies with EC 91/114 and 78/2009 (external projections an...
Find out more about the product

Secure payments
Secure payments
We guarantee secure payments
Warranty
Warranty
Products Guarantee
Made in Italy
Made in Italy
Italian manufacturing quality

Do you want to become a reseller?

Contact us and we will give you all the details

Get in touch

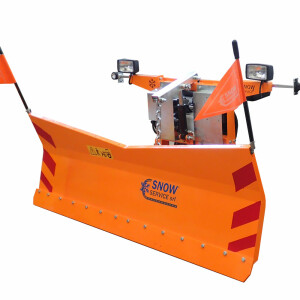

MICROTECH is the snow plough for pick-ups and trucks cat. N1 with GVWR ≤ 3.5 t built with a special support structure. It can be hitched to the transport vehicle without the need for a traditional DIN mounting plate and complies with EC 91/114 and 78/2009 (external projections and protection of pedestrians).

MICROTECH  is therefore a front-mounted snow plough for pick-ups with single plough, with a shock-absorbing system consisting of special ela

Read more

MICROTECH is the snow plough for pick-ups and trucks cat. N1 with GVWR ≤ 3.5 t built with a special support structure. It can be hitched to the transport vehicle without the need for a traditional DIN mounting plate and complies with EC 91/114 and 78/2009 (external projections and protection of pedestrians).

MICROTECH  is therefore a front-mounted snow plough for pick-ups with single plough, with a shock-absorbing system consisting of special elastomers that exert a pulling force on the forward tilt of the mouldboard, pulling it back into the vertical work position once the obstacle has been overcome.
The plough is available in S235JR steel painted RAL 2011 orange or in stainless steel, and the scraper blade in wear-resistant Hardox steel or neoprene.


The MICROTECH snow plough is hydraulically operated with hydraulic cylinders for left/right tilting and lifting/lowering, and is equipped either with a radio control (integral part of the electro-hydraulic control unit), or alternatively with an electric wired push-button control paired with the  hydraulic system installed on the vehicle.
MICROTECH operates via a 12V electro-hydraulic control unit, which on request (optional) can be installed on the snow ploughing implement. Alternatively, a special hydraulic system developed on the transport vehicle.
The paintwork is stove-enamelled with a special anti-rust treatment and final RAL 2011 enamel, and the pipes are R2 with standardised fittings and quick couplings.

The basic version of the MICROTECH snow plough for pick-ups is fully equipped, including:

  • Single-acting hydraulic cylinder for blade lifting
  • Blade in wear-resistant steel
  • No. 2 single-acting hydraulic cylinders for blade orientation
  • Mechanical hitching support
  • High beams
  • Shock-absorbing system by means of polyurethane elastomers
  • Front plough in RAL 2011 orange painted steel

The following optionals are also available:

  • Clearance lights with movable, extendable support to indicate the maximum blade footprint
  • Front plough in aisi 304 stainless steel
  • 12V electro-hydraulic control unit with push-button panel and radio control covered by an inspectionable box for maintenance and
  • Weather protection
  • 2-core electric cable for electrical connection to the vehicle battery with connection plug and fuse
  • Scraper blade in neoprene as an alternative to the steel blade
  • Rubber splash guard on top edge of blade
  • Complete blade hitching kit for cars, pick-ups and jeeps
  • Complete blade hitching kit for mini 4x4 trucks in the VEM Italia, Piaggio PORTER and similar series



We focus on adapting our products to your vehicle, reducing the need for maintenance and customising our services.
For special requirements, our equipment can be adapted to suit your needs. Contact us for a personalised quote.

Show less

CODE

MODEL

WEIGHT WITH CONTROL UNIT (kg)

WIDTH (mt)

HEIGHT (mt)

WORKING WIDTH (mt)

5030760

MICROTECH 220

150

2,20

0,6

1,90
