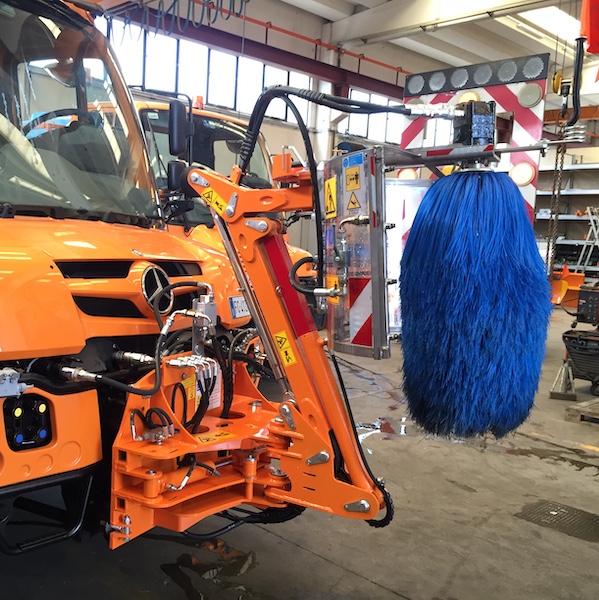

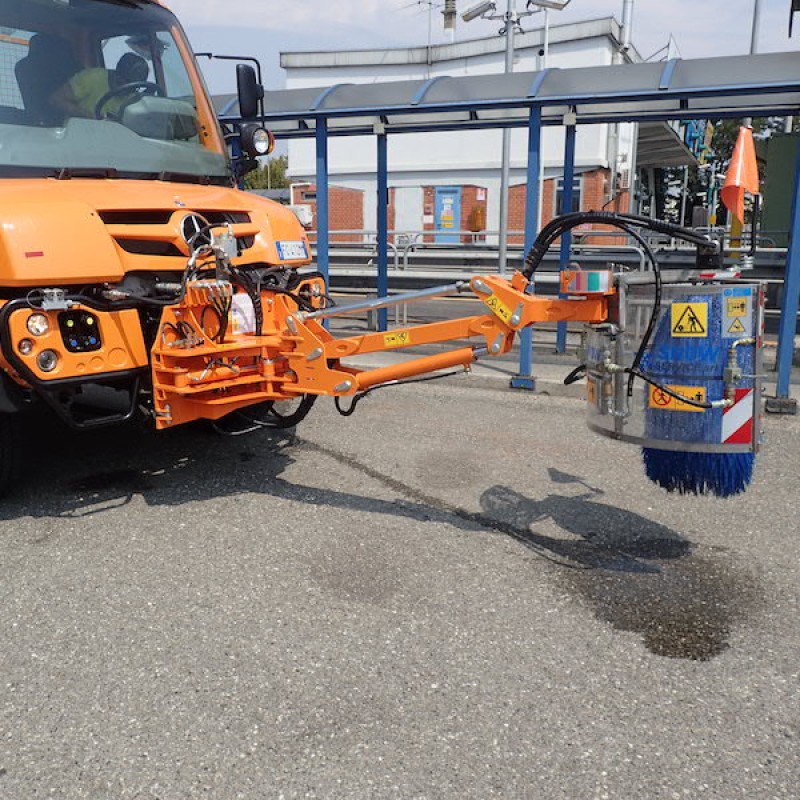

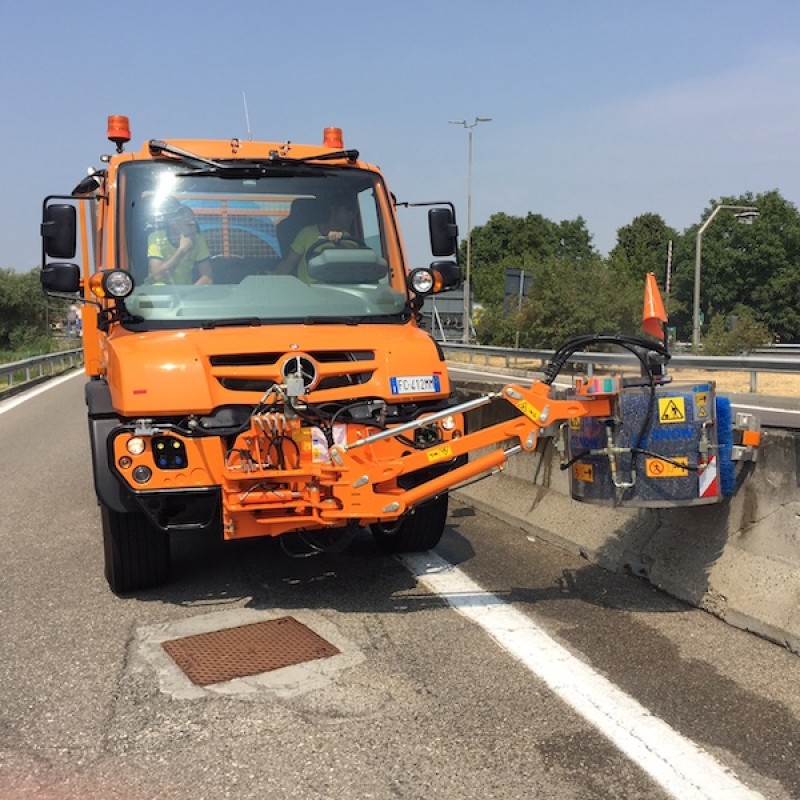

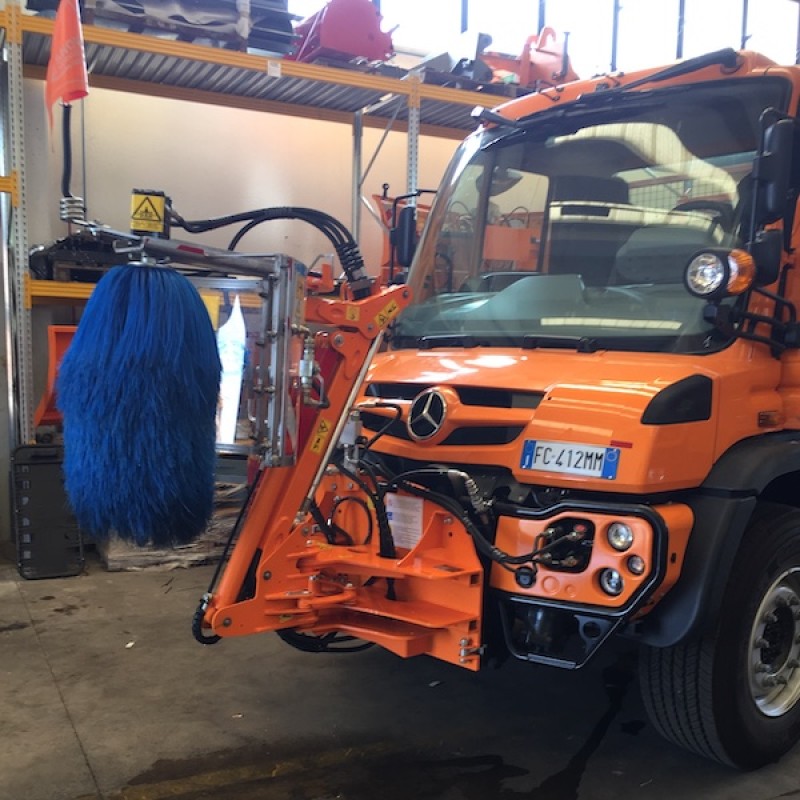

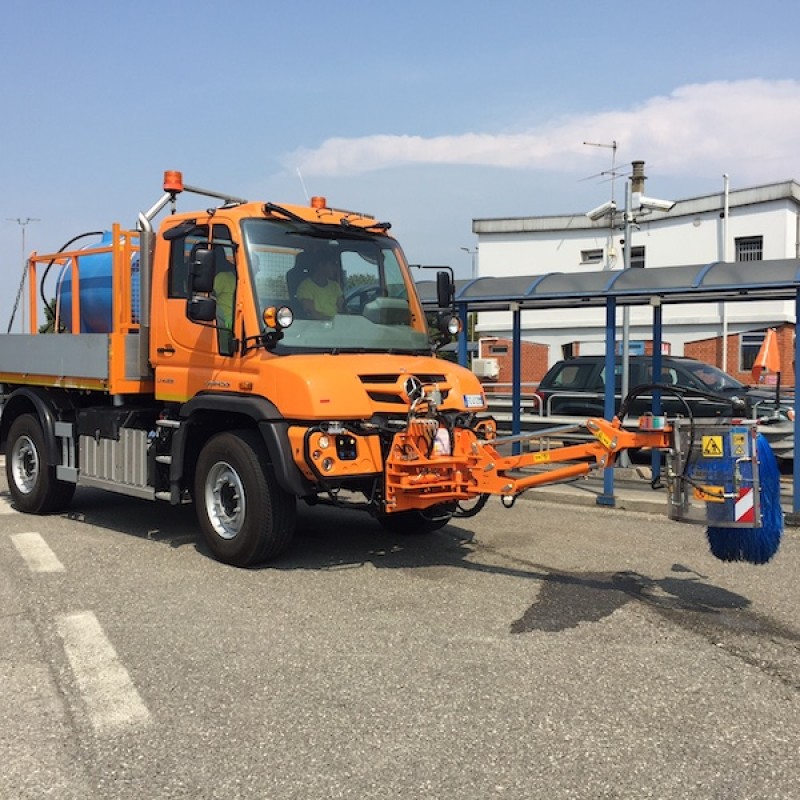

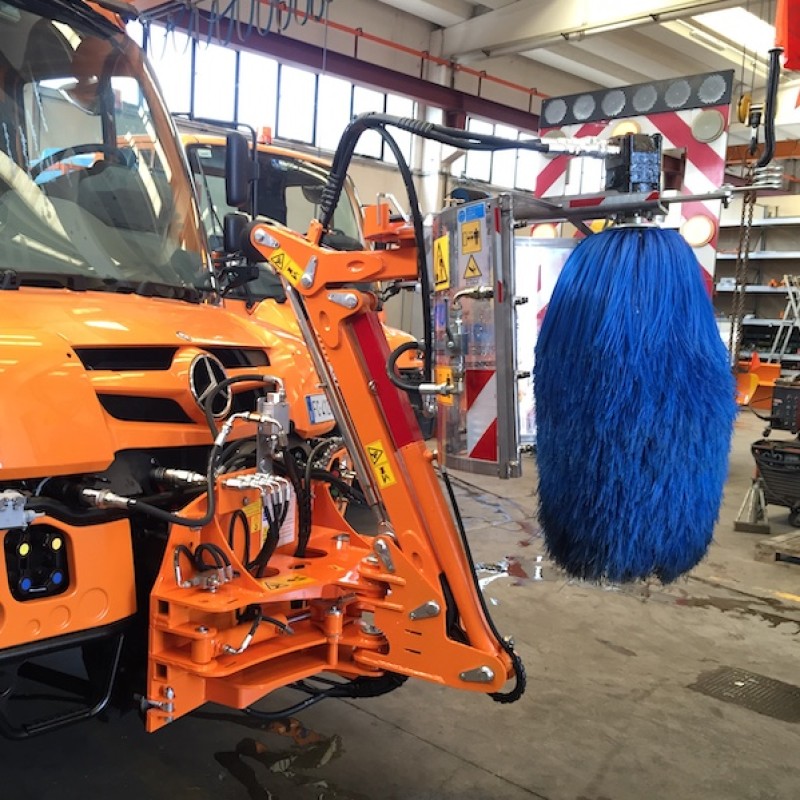

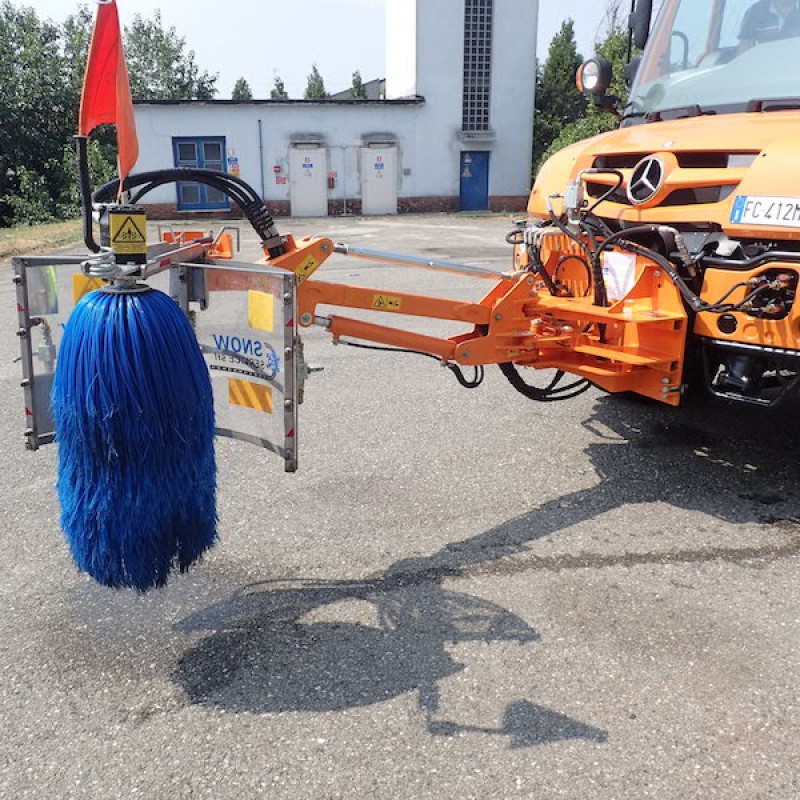

The BLG gem washing arm is equipped with a DIN 76060 A/B coupling and its movement is completely hydraulic.

The working height is easily adjustable by means of a double-acting hydraulic cylinder.

The effectiveness of BLG's washing and cleaning work is guaranteed by the use of jets specifically inserted to humidify the washing area before the passage of the brush. This favors an optimal final result, whatever the type of situation and the type of dirt.

It is composed by:

• no. 1 double-acting distributor for brush rotation (flow rate 40 l/min. – pressure 90 bar)
• no. 1 double-acting distributor for lifting cylinder (flow rate 20 l/min. – pressure 90 bar)
• no. 1 double-acting distributor for brush rotation hydraulic motor (flow rate 30 l/min. – pressure 90 bar)
• no. 1 brush with nylon bristles Humidification jets

The equipment for the BLG gem washing arm can be customized and adapted according to specific requests. For example, the washing air can vary from 2 to 4 metres, depending on the number of bars installed and the number of nozzles present and used for humidifying the washing area, from 16 to 32.

We pay close attention to adapting our products to the medium you have, reducing the necessary maintenance and customizing services. For special needs, contact us for a personalized quote.
